INDUSTRIAL DATALOGGERS FOR IOT

Monitoring without any compromise

Our 4DIN model is a monitoring unit for all applications where it is necessary to collect and manage a large number of quantities. It has an ample set of communication and signal sending and receiving ports, an input for powering by backup battery, an RJ45 connector and a USB port to ensure connectivity via cable or modem. Its alphanumeric display and on-board keyboard allow easy initial configuration. Depending on the type of application, it can manage 1000, 1500 or 2500 quantities, and, thanks to a new software engine, it offers a more intuitive, faster and more efficient interface.

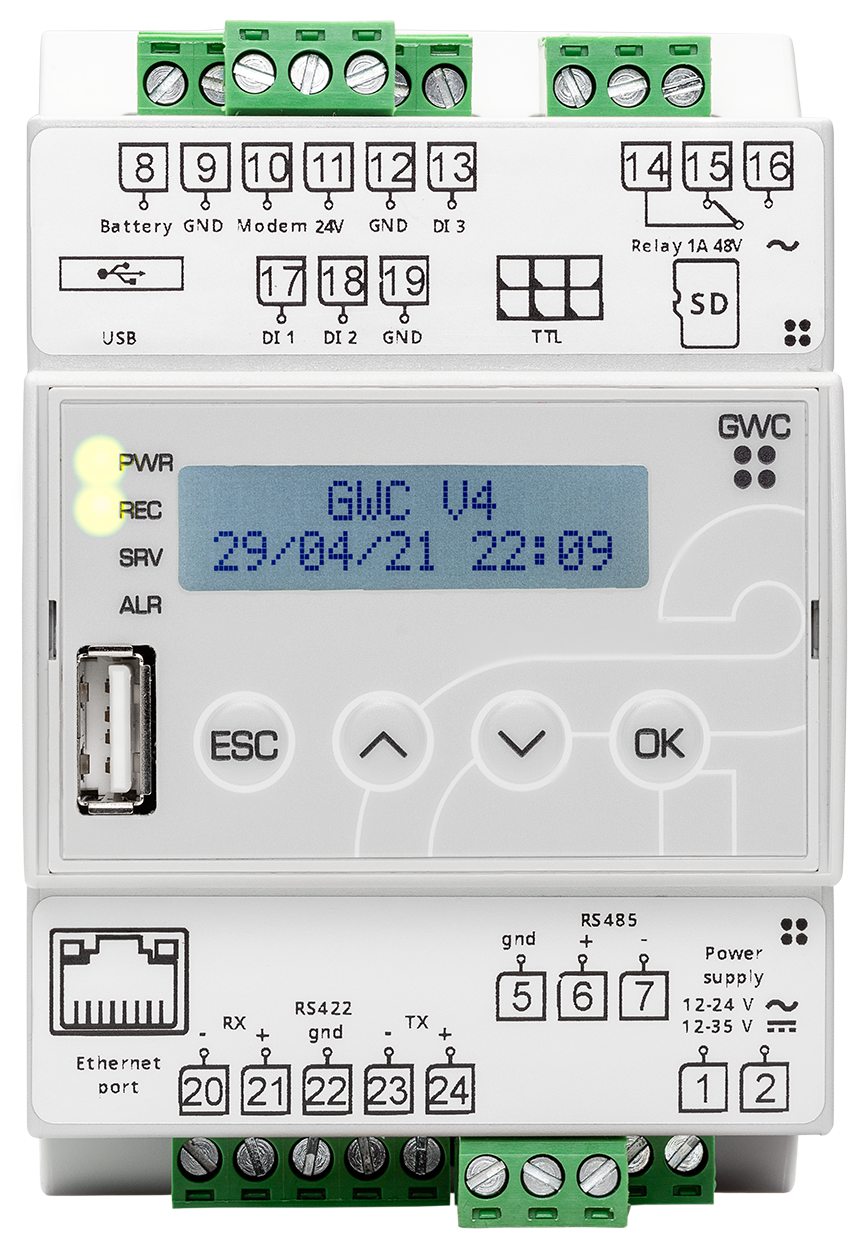

GWC-4din_M

PRODUCT SPECIFICATIONS

Characteristics and connectivity

  • Format: 4 DIN modules
  • Power supply: 12-24 V AC ± 10% - 12-35 V DC ± 10%
  • Power consumption: 6 VA max.
  • Protection rating: IP20
  • Operating temperature: -20 ÷ +55 °C
  • Digital inputs: 1 dry contact, 2 pulse counters
  • Serial ports: 1 RS485, 1 RS422
  • Connectivity: 1 Ethernet RJ45 for internet LAN - 1 USB
  • Alarm relay output: MAX 24 V AC/DC ÷ 1A - SPDT type
